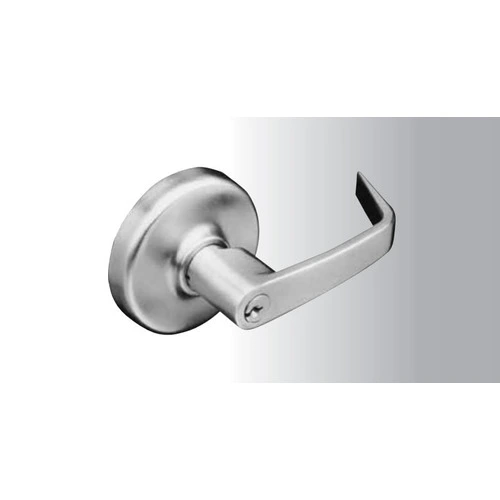

Corbin Russwin CL3857 NZD 613 CL6 CL3857 Storeroom Lockset X IC, Oil Rubbed Dark Bronze

Storeroom with Newport Lever, 613 Oil-Rubbed Dark Bronze, ANSI Strike, 2-3/4″ Backset, IC Less Core
CL3800 SeriesStandard-Duty Key-in-Lever Locksets

An economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It’s the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability.

Typical applications include:

• Interior offices

• Closets

• Multi-family housing

• Restaurants

• Retail complexes

Advantages:

• Lever Release™ for vandal resistance

• Solid cast levers

• ANSI/BHMA Grade 2 certification

• UL-cUL 3-hour fire rating

• Independent lever return springs

• Thrubolts on door for solid attachment

• Covers ANSI/BHMA door prep A156.115

Certification/Compliance: ANSI/BHMA:

• Certified A156.2 Series 4000, Grade 2
• Meets A117.1 Accessibility Code

Federal:

• Meets FF-H-106C

California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with returns comply; levers return to within 1/2″ of door face

UL-cUL:

• All locks listed for “A” label single doors
• Letter “F” and UL symbol on latch front indicate listing

Windstorm/Hurricane:

• Certified (refer to local codes)

Features: Handing:

• Non-handed

Door Thickness Adjustment:

• Standard 1-3/8″ to 1-7/8″ (35 to 48mm); factory set for 1-3/4″ doors. For 2″ (51mm) and 2-1/4″ (57mm) doors, specify door thickness

Lock Chassis:

• Steel, zinc dichromated for corrosion resistance

Backset:

• 2-3/4″ (70mm) standard

Latchbolt:

• 1/2″ (13mm) throw latch with universal “floating” front to fit both flat and beveled doors
• 2-1/4″ x 1-1/8″ (57 x 29mm) square corner front for 2-3/4″ (70mm) backset standard

Auxiliary Latchbolt:

• Deadlocking latchbolt prevents manipulation when door is closed

Strike:

• ANSI curved lip strike standard, 4-7/8″ x 1-1/4″ x 1-1/4″
  (124 x 32 x 32mm) lip to center

Cylinder:

• Brass, 6-pin, L4 keyway, “0” bitted standard

Keying Features Available:

• Conventional 6-pin
• Conventional 7-pin
• Master keying
• Construction master keying
• Visual key control
• Concealed key control
• Pyramid® Security
• Pyramid High Security
• Interchangeable core (IC)
• Security
• Security IC
• Pyramid Security IC
• Pyramid High Security IC
• Access 3®

Keys:

• Two nickel silver standard

Warranty:

• Five-year limited

Vandal Resistance:

• All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position.
