Hager 042334 2961 32D ITC MBS – 2000 Lbs Holding Force

2961 32D ITC MBS
SPECS :

Accessories: 2-679-0600 Wood door reinforcement box (sold separately)

Applications:

• Ideal for commercial grade hollow metal and wood doors and frames and Herculite doors with top rails
• Concealed, high security, Fail Safe locking mechanism

Electrical Specifications:

• 650mA/340mA @ 12/24VDC – Power Input (Auto Sensing)
• SPDT, dry 250mA @ 30VDC – Door Position Sensor (Optional)
• SPDT, dry 250mA @ 30VDC – Magnetic Bond Sensor(Optional)

Features:

• 2,000 lbs (907 kg) holding force without current inrush or high operating temperature
• Integrated electronics
• 1-5/8″ (41 mm) depth for 1-3/4″ – 2″ (44 mm – 51 mm) frames
• Door static sensor ensures door is at rest and aligned, before the magnet is permitted to energize (eliminates the potential for lock misalignment)
• Lateral adjustment of shear tabs to compensate for warped or misaligned doors, permitting accurate locking
• Vertical adjustment of both the armature and the adjustable delay relock sensor compensates for wide door gaps
• Unique floating action for easy armature lift when the magnet is energized and provides ability to overcome wide door gaps
• Alloy shear tabs ensure continued high holding force
• No profiling of the soft armature steel that may be prone to wear and reduced holding force
• Noise dampeners reduce the noise associated with locking and unlocking

Howtoorder: Armature supplied with lock (specify type required – ITC, FTC, or HTC)

Options:

• Door Position Switch (DPS) – Indicates door open and door closed
• Magnetic Bond Sensor (MBS) – Indicates locked and unlocked, low holding power, tampering, and obstruction between the armature and magnetic core
• ITC: Armature for standard mounting armature kit for aluminum and hollow metal doors with 7/8″ to 1-1/8″ deep top channels, wood doors, and factory prepared hollow metal flush edge doors
• HTR: Herculite Top Rail, Armature adjustment bracket for leading edge adjustments
• HTC: Herculite Top Channel, Armature mounting kit for 1-15/16″ deep Herculite channels
• FTC: Armature mounting kit for field prepared horizontal mounting in hollow metal doors with flush edge

Product Description: 2,000 lb. holding force, 1-5/8″ depth, integrated electronics

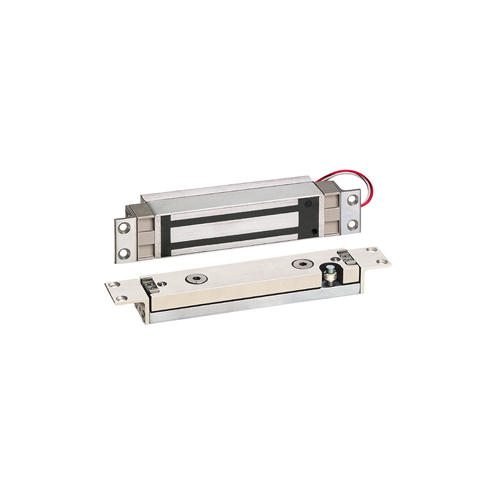

Product Name: Single magnetic shear lock with 2000 lbs. holding force

Product Number: 2961
