Hager 050532 4501 RIM LD 36″ US26D FEC (REV 2) – Onboard Delayed Egress

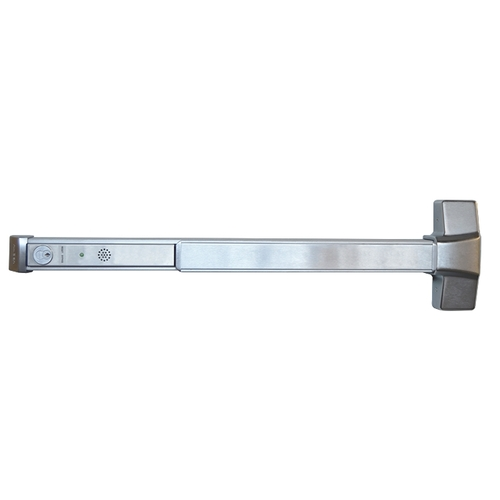

4501 RIM LD 36″ US26D FEC (REV 2)
SPECS :

Applications:

• Airport & Public Facility Security and Safety
• Loss Prevention
• Restrict the egress of wandering patients for safety
• Restrict the egress of commercial center patrons for security

Certifications:

• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL/cUL Listed for up to 3 hours for “A” labeled doors
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Complies with ANSI 117.1 for accessible buildings and facilities

Code Compliance:

• IFC International
• IBC International Building Code
• NFPA 101 Life Safety Code
• NFPA 1 Uniform Fire Code
• California Building Code

Cover: Stainless steel, zinc

Cover Tube: Aluminum

Cylinders Cores: Requires a 3902 mortise cylinder with standard cam, sold separately

Electrical Specifications:

• DE; 540mA @ 24VDC signal; 790mA @24VDC Tandem
• Reset/RX Input: N/O, Dry contact
• bypass Input: N/O, Dry contact
• DPS Input: N/O, Dry contact

Electricmodifications: OBDE – Onboard Delayed Egress

End Caps: Zinc

Fasteners:

• Wood and machine screws
• Thru-bolts

Notes:

• Rod covers by others recommended for SVR/LBR Applications
• Recommended to be used on appropriately reinforced doors

Operational Functionality:

• Typically used on exit doors when unauthorized egress is initiated when in the locked mode. The door unlocks after 15 seconds permitting egress
• SVR exits must include rod covers
• Door position switch (DPS) is recommended

Outputs:

• Secure / Unsecure status
• Egress initiation status
• Released / Bypass status
• Alarm Relay 1A @30VDC SPDT, Dry
• Door security relay 1A@30VDC SPDT, Dry

Product Description: Available for all 4500 series devices

Product Number: 4501 OBDE

Push Bar: OPTIONAL Photoluminescent push bar cover available

Trim:

• Escutcheon trim
• Pull plate trim
