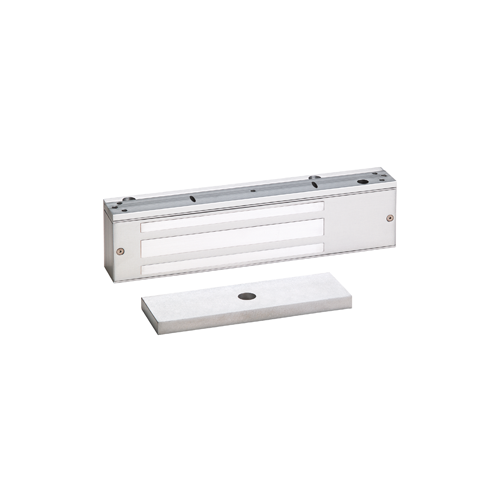

Hager 178248 2953 ALM DPS – Single With 1200 Lbs Holding Force

2953 ALM DPS
SPECS :

Applications: For perimeter and interior door security and access control

Certifications: ANSI/BHMA A156.23 Grade 1 Compliant

Electrical Specifications:

• 125mA @ 12/24VDC – Power Input (Auto Sensing)
• SPDT, dry 250mA @ 30VDC – Anti-Tamper Switch (Optional)
• SPDT, dry 250mA @ 30VDC – Door Position Sensor (Optional)
• SPDT, dry 250mA @ 30VDC – Magnetic Bond Sensor (Optional)

Features:

• Can be ordered with optional features factory-installed or added as modular upgrade kits
• Field upgradeable without removal
• Quick mount assembly
• Compatible with any access control system
• Secure wiring and mounting screws with interlocking mounting plate

Module Options:

• 2-679-0109 – Timer Input Field installed upgrade
• 2-679-0110 – Door Position Switch Field installed upgrade
• 2-679-0111 – Magnetic Bond Sensor Field installed upgrade
• 2-679-0112 – Anti-Tamper Switch Field installed upgrade

Mounting Kits:

• Top Jamb Kit
• Glass Door Kit
• Universal Header Bracket
• Spacer Bracket
• Armature Mounting Plate with and without Sensor
• Door Coordinator Lock Mounting Kit
• Filler Plates
• Angle Brackets
• See “2950 Accessory Reference List” in related files for a complete list of all mounting kits and part numbers

Options:

• Timer Input (Time) – Built-in field adjustments 0-30 seconds re-lock delay
• Door Position Switch (DPS) – Indicates door open and door closed
• Anti-Tamper Switch (ATS) – Indicates access cover removal
• Magnetic Bond Sensor (MBS) – Indicates locked and unlocked, low holding power, tampering, and obstruction between the armature and magnetic core

Product Description: 1,200 lb. holding force, Surface mount – single, 12/24VDC

Product Name: Single magnetic lock with 1200 lbs. holding force

Product Number: 2953
