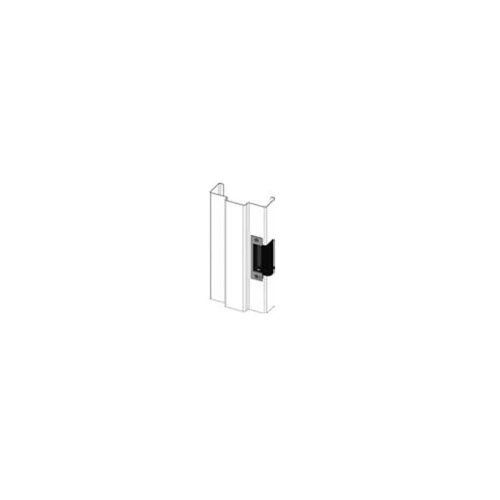

Fail Safe, Universal 12/24VDC Electric Strike, Body Only, Latchbolt Monitor, Satin Brass
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8″ strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
The 1006 Series is versatile and strong.
The 1006 series is a strong and versatile electric strike. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard. With multiple faceplate options, the 1006 will fully accommodate every lock.
| Finish | Satin Brass |
|---|---|
| Holding Force | 3000 |
| Package Volume | 79.734375 |
| Amp Draw | .45 @ 12V .25 @ 24V |
| Keeper Size | 1 In. |
| Grade | Grade 1 |
| Frame Application | Metal or Wood |
| Package Length | 10.5" |
| Base Material | Brass |
| Switch Type | LBM |
| BAA Qualified | Yes |
| Origin | USA |
| Function | Electrically Locked (Fail Safe) |
| Color Code | 606/US4 |
| Package Width | 3.375" |
| Package Height | 2.25" |
| Package Qty | 1 |
| Application | Multi-Application |
| Operating Voltage | 12VDC/24VDC |
| Configuration | Universal |
| Fire Rated | No, Yes |
| Strike | 12VDC / 24VDC Fail Safe Electric Strike Body with Latchbolt Monitor |
| Use With | Cylindrical Locks, Mortise Exit and Latch Locks |
