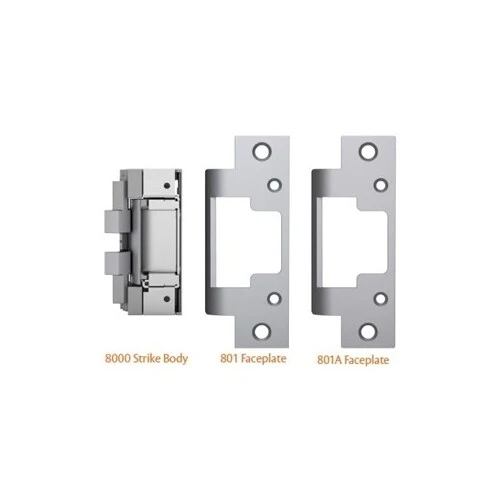

HES 8000C 630 8000 Series Electric Strike Complete Pack, Satin Stainless Steel

For Latchbolt Locks, 12 or 24 volt, 630 Satin Stainless Steel
8000 SeriesElectric Strike

Works with cylindrical locksets and accommodates latchbolts up to 5/8″ throw

The concealed electric strike solution for cylindrical locksets.

The HES 8000 Series Electrical Strike is a compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the HES 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8″ throw.

Features:

• No cutting on frame required

• Vertical adjustability to accommodate door sag and misalignment

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2″ – 5/8″ [12.7mm – 15.9mm] cylindrical latchbolt (5/8″ [15.9mm] with 1/8″ [3.175mm] door gap)

• Strike body depth 1-1/16″ [27.3mm]

• Strike body width 1-7/16″ [36.5mm]

• Plug-in Connector

• SecuriCare five-year, no-fault, no questions asked warranty
• (Addition of HES SMART Pac® III extends the warranty to 10 years)

Certifications:

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed and suitable for outdoor use

• UL 294 listed

• RoHS compliant

Frame Application:

• Metal

• Wood

• Aluminum

Electrical (DC Continuous Duty):

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Finishes:

• 630 – Satin stainless steel
• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 613 – Bronze toned
• 629 – Bright stainless steel
• BLK – Black
