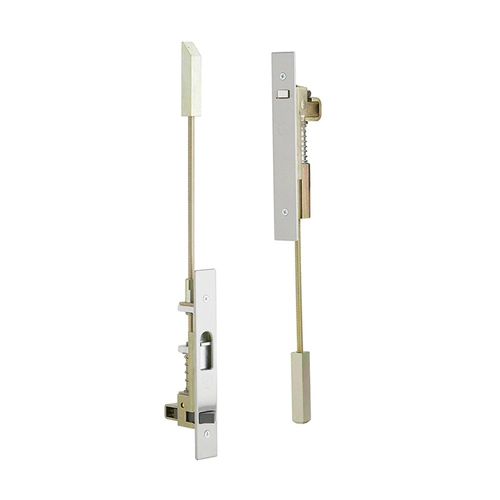

IVES FB51P-12-MD US32D FB51P Constant Latching Top/Bottom Flush Bolts – Metal Doors, Satin Stainless Steel

Pair (top and bottom) constant latching flush bolts, Stainless Steel substrate. 630 Satin Stainless Steel
FB51P Top and bottom bolts (pair)

• For use with metal doors only
• Constant latching—inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when closed
• Low actuation forces
• Non-handed
• Bolt throw is 3/4″ with a 7/8″ vertical adjustment
• Bolt backset is 3/4″
• Standard rod length is 12″, which is measured from the center of the flush bolt body to the bolt tip

Certifications

• Meets ANSI A156.3 Type 27
• Fits standard ANSI A115.4 door frame preparations
• UL Listed, 3 hour fire doors 8’0″ x 8’0″
