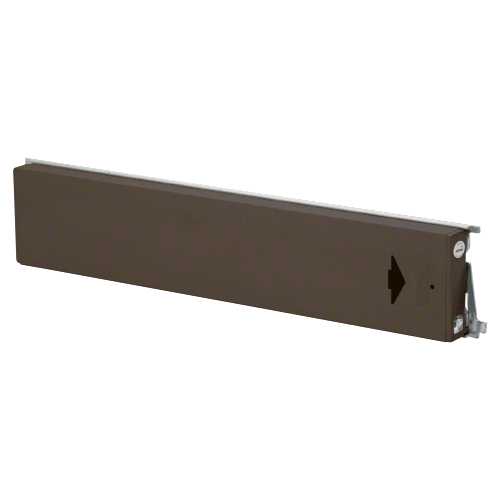

Jackson 313186R7313 Model 3186 Mid-Panel Concealed Vertical Rod Exit Device Dark Bronze Finish Right-Hand Reverse Bevel

CRL Jackson® 3100 Series Mid-Panel Exit Devices are designed as a non-protruding push-pad exit device providing maximum clearance while maintaining an aesthetically pleasing look. Developed in the Jackson® tradition of high quality and durability, this exit device is suitable for use with narrow, medium and wide stile aluminum doors. These devices are handed – not reversible, and provide “dual dogging” allowing the device to be dogged open by either the outside cylinder or by the standard hex key dogging feature. An installation, Mid-Panel Installation Kit is available (sold separately), for doors over 7′ tall use 12″ Top Rod Extender #301347 or 24″ Top Rod Extender #301348. Cylinder mounting pad 30821B628 required for installation of a 1″ mortise key cylinder such as DL2170SCKDA.
SPECIFICATIONS:

For Use With Minimum 1-3/4″ (44 mm) Narrow, Medium, and Wide Stile Aluminum Doors

Concealed Easy-to-Use Hex Key Dogging or by Outside Cylinder

Wear Points Insulated by Nylon Sleeves and Rollers

Available With Either an Engraved “Arrow” or “Push”
3186 Concealed Vertical Rod Device – Top Bolt

Top and Bottom Bolt Action – 1/2″ (13 mm) Throw

Standard Height 84″ (2.13 m)

Requires Mortise Cylinder and No. 30821B Mounting Pad for Keyed Entry
MATERIALS:

Body and Push Pad: Extruded Aluminum

Mechanical Components: Stainless and Hardened Plated Steel

Latch and Strikes: Sintered Steel
