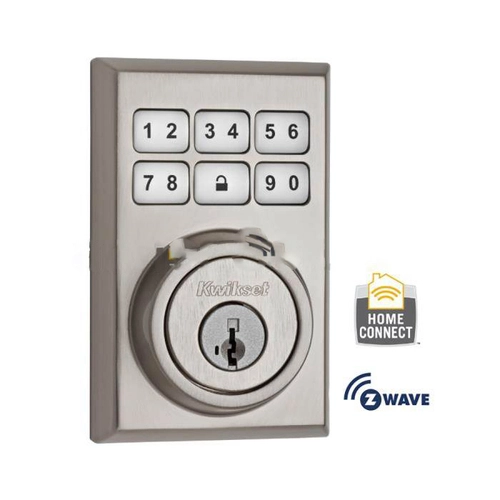

Kwikset 910-CNT-ZW-15-SMT-RCAL-RCS SmartCode 910 Touchpad Electronic Deadbolt

SmartCode 910 Contemporary Touchpad Electronic Deadbolt SmartKey with Home Connect, Round Corner Adjustable Latch and Round Corner Strike in Satin Nickel
910 SmartCode™ DeadboltFeaturing Zigbee HA1.2

Single Cylinder Electronic Deadbolt

Convenience:

• Backlit keypad with one-touch locking

• Motorized locking mechanism enables true remote locking & unlocking

• Tapered deadbolt design permits misaligned doors to lock & unlock with ease

• SmartKey® easy re-key backup keyway

• Interior LED status indicator—Locked/Unlocked status & low battery status

• Auto re-lock feature—locks door 30-seconds after unlocking

Security:

• 30 user access code capacity, 4–8 digit code length

• 128-bit Advanced Encryption Standard (AES) communication

• Meets BHMA Grade 2 deadbolt operational and security standards

• Drill and pick resistant backup keyway with BumpGuard™ protection

• Independent, local user authentication – No controller connectivity required

• User settings stored on lock memory – settings remain even in case of a power outage

Customizable Features:

• Auto re-lock 30-seconds after unlocking – ON/OFF

• Interior LED locked/unlocked status – ON/OFF

• Audible feedback – ON/OFF

Electrical Specifications: Input Power:

• 6V
• (4 x AA alkaline batteries)

Mechanical Specifications: Door Prep:

• 2 1/8″ diameter face hole & 1″ diameter latch hole

Backset:

• Adjustable 2 3/8″ or 2 3/4″

Door Thickness:

• 1 3/8″ – 2″ automatic adjustment

Faceplates:

• 1″ x 2 1/4″ round corner standard

Strikes:

• Round corner strike 2 3/4″ x 2 1/8″

Latch:

• Round corner adjustable 2 3/8″ x 2 3/4″

Bolt:

• 1″ throw, steel deadbolt

Door Handing:

• Reversible

Cylinder:

• SmartKey Security™

Environmental Specifications: Temperature Range:

• Exterior: -40°F to 150°F
• Interior: 32°F to 140°F

Humidity:

• Exterior: 100% condensing
• Interior: 99% non-condensing

HA 1.2 Enabled Lock Features:

• Monitor lock status
• (locked/unlocked)

• Remote locking and unlocking

• Lock jam notification

HA1.2 Enabled Lock Management Features: Over the Air Updates:

• ZigBee daughter card and Lock mainboard updates

Multiple user type settings:

• 24/7 user codes
• Time limited user codes (up to 7 schedules per user)
• One-time user codes

Remote Lock Configuration:

• Add/Remove users
• Status LED On/Off
• AutoLock (time is user configurable)
• Sound on/off

• Remote and local reset to factory default settings

• Remote power status information

• Remotely disable/enable local programming interface

• Tamper detection – Alarm if the device senses lock disassembly

• Audio/Visual enrollment success indicator

• Invalid code entry alarm with lockout state duration
• (user configurable)

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
