$96.99
- Free Shipping Worldwide
- Hassle-Free Payments
- Quality that lasts, prices that don't.
- Shop with Zero Worries

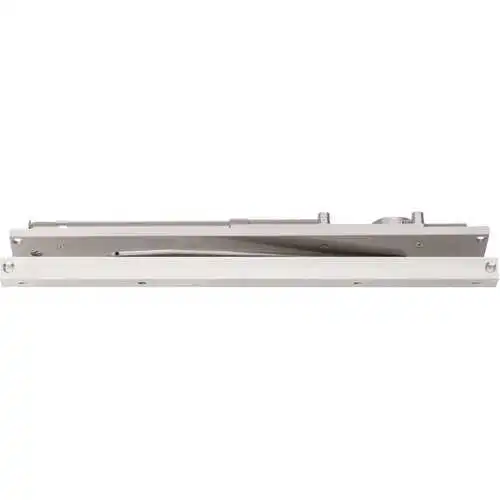

The heavy-duty 2030 Series closers is designed for concealment in a narrow minimum 1-3/4 in. aluminum transom, meeting ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030, quiet door control, with separate regulation of general closing speed and latching speed. It is UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials include a cast iron cylinder, a 1-piece forged steel piston, a high-efficiency, full-complement, low-friction bearing, tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate.
- Standard arm
- Size 5
- Frame mount
- Right hand
- 180° swing
- Not applicable
- 15-year limited warranty
- ANSI A156.4, grade 1, UL 10C, ADA
- Wood and machine screws
| Grade | Grade 1 |
|---|---|
| Builders Hardware Product Type | Door Closer |
| Aluminium Bottle Contents | Swinging |
| UNSPSC | 30171514 |
| Warranty | 1 Year From Date of Purchase. |
| Mounting | Top Mount |
| Product Width (in.) | 4.5 |
| Product Height (in.) | 24 |
| Product Depth (in.) | 4 |
| Maximum Door Range (deg.) | 110 |
| Hardware Finish Family | Metal |
| General Material | Steel |
| General Color Family | Metallics |
| Commercial/Residential | Commercial |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | 15 Year Limited Warranty |
| Type | Concealed Overhead |
| Pack Size | 1 |
| Handing | Right Hand |
| Base Material | VARIES |
| Package Qty | 1 |
| Mounting Location | In Header |
| Degree Swing | 180 Deg. |
| Cold Weather Fluid | Yes |
| Package Volume | 0 |
| BAA Qualified | Yes |
| Closer Size | 5 |
| Hold Open | Without Hold Open |
| Color Code | 689/US28 |
| Color | Sprayed Aluminum |
| Hand | RH |
| ProductType | Manual |
