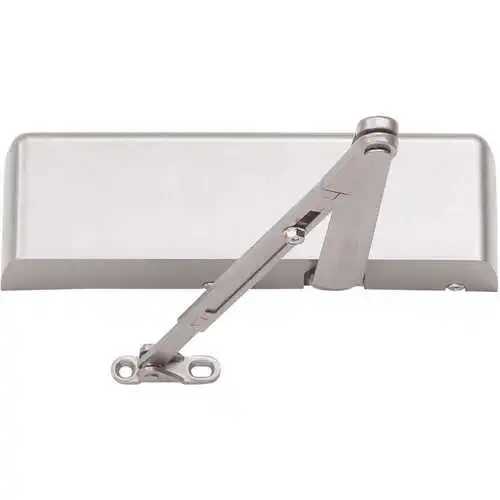

The 4020 Series is a heavy-duty closer that meet demands for high-traffic installations and is designed specifically for unique mounting applications. It is UL and cUL listed, meets ANSI/BHMA Grade 1 standards and boasts 30-year warranties. It features a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. It also features the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
- Regular arm
- Size 1-5
- Push side mount
- Right hand
- 180° swing
- Full body cover
- 30-year limited warranty
- ANSI A156.4, grade 1, UL 10C, ADA
- Self-reaming tapping screws
| Grade | Grade 1 |
|---|---|
| Pack Size | 1 |
| Warranty | 30 Year Limited Warranty |
| Mounting | Top Mount |
| Product Width (in.) | 4.5 |
| Product Height (in.) | 16 |
| Product Depth (in.) | 4.5 |
| Maximum Door Range (deg.) | 110 |
| Hardware Finish Family | Metal |
| General Material | Steel |
| General Color Family | Metallics |
| Commercial/Residential | Commercial |
| Certifications and Listings | ANSI Certified |
| Builders Hardware Product Type | Door Closer |
| Manufacturer Warranty | 30 Year Limited Warranty |
| Handing | Right Hand |
| Cover | Full Plastic |
| Base Material | VARIES |
| Package Qty | 1 |
| Mounting Location | Push Side |
| Degree Swing | 180 Deg. |
| Cold Weather Fluid | Yes |
| Package Volume | 0 |
| BAA Qualified | Yes |
| Closer Size | Adj. 1 to 5 |
| Hold Open | Without Hold Open |
| Mounting Style | Top Jamb |
| Color Code | 689/US28 |
| Color | Sprayed Aluminum |
| Hand | RH |
| Type | Surface |
| UNSPSC | 30171514 |
