Compatible with:
TB-LINX
Gate Stop, Not Compatible With Gates Less Than 30″ Wide
Other features:
To retain product warranty & restrict gate opening angle, a gate stop must be installed.

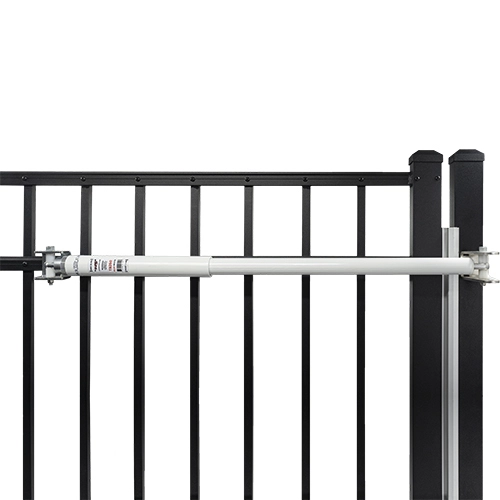

TB650 can be mounted on chain link gates with the TB-LINX. TB-LINX sold separately.
Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
| Type | For Gates 150-250 lbs |
|---|---|
| Hinge Arrangements | In-line or offset |
| Type Of Gate Material | Vinyl, steel, wood, chain link |
| Opening Pressure | Approx. 8-18 lbs. |
| Min. Operating Temperature | 15 Degrees Fahrenheit |
| Max. Operating Temperature | 122 Degrees Fahrenheit |
| Max. Opening Angle | 100 Degrees |
| Material Details | Steel |
| Gate Width | 44-72" |
| Hand | Non-Handed |
| Gate Weight | 150-250 lbs. |
| Closing/Latching Method | Hydraulic/nitrogen gas |
| Finish Details | PVC coated |
| Package Qty | 1 |
| Degree Swing | 100 Deg. |
| Color Code | White |
| Finish | White |
