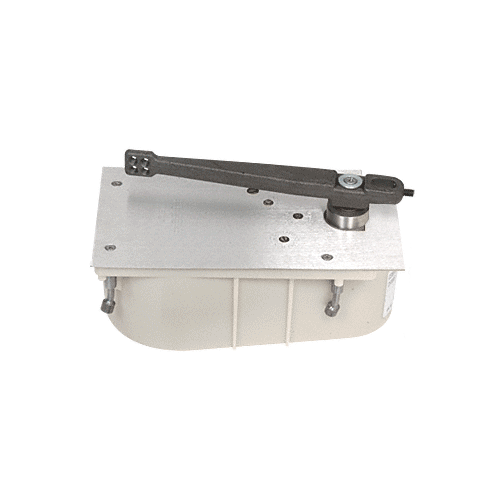

Rixson 28105SH0LHSC Satin Chrome 28 Series Center-Hung Left Hand 105 Selective Hold Open Floor Mounted Closer – Complete Package

Rixson® Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson® Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
FEATURES AND SPECIFICATIONS:

Single Acting, Handed

Selective Hold Open (SHO) Stocked

Separate and Independent Valves for Closing Speed, Latching Speed, and Backcheck Adjustments

Built-in Positive Dead Stop Prevents the Door From Swinging Beyond the Opening Degree Specified. (Stock 90º and 105º)

“PH” Models Meet ANSI A117.1 Physically Handicapped 8.5 Lb. A.D.A. Opening Force

350 Lbs. (159 kg), 48″ (1.22 m) Width Capacity.

Furnished with Wood and Machine Screws
CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot
The following components are included to complete the job:
253000Floor Closer Cement Case
284720RHCloser Cover
282026Bottom Center-Hung Arm
340Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
