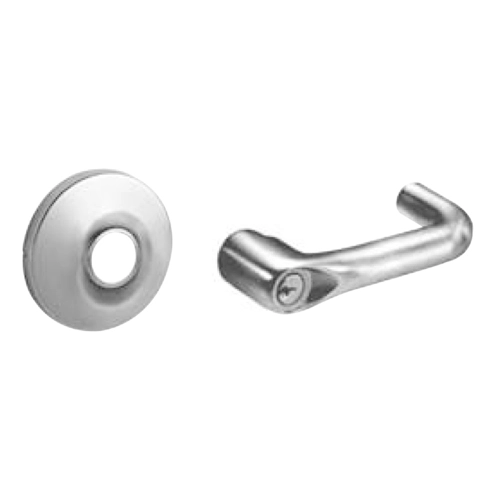

Sargent 28-10G37 LJ 26D 10 Line G37 Classroom Lever Lockset, Satin Chrome

2-3/4″ Backset, #808 Strike, Classroom Lockset, L Rose, J Lever, US26D Satin Chrome Finish
10 LineCylindrical Lever Lock

Enduring more than 1.5 times the industry standard of abusive force, the 10 Line lock is a heavy-duty key-in-lever handle lockset that also exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles. And in addition to preventing unwanted entry, the 10 Line is designed to conform to national and state fire and handicapped requirements.

Features:

• Installs in one minute or less

• Adapts to fit multiple thrubolt positions

• Customizable with a variety of lever styles, finishes and functions

Benefits:Efficient Installation:

• Pre-assembled components make installation quick and easy

Flexible:

• Accommodates retrofit applications and a variety of door preparations

Customizable:

• Offered with a variety of lever styles, roses and finishes

Certification Compliance:ANSI/BHMA:

• Certified ANSI A156.2 Series 4000 — Grade 1

UL:

• UL listed to U.S.A. and Canadian safety standards
• Listed for 3 hour door

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA:

• All levers conform to ADA requirement for barrier-free accessibility

California Code:

• Levers (L, J & P) conform to California Administrative Code Title 19 and 24

Hurricane Code:

• All individual components of a total door opening are required to comply with each code.
• Refer to the SARGENT Website (www.sargentlock.com) for specific code compliance listings for both the lock hardware and other door components.

Specifications:For Doors:

• 1-3/4″ (44mm) thick door adjusts to 2″ (51mm) standard

Backsets:

• 2-3/4″ (70mm) backset w/ 1-1/8″ front (standard)

Cylindrical Housing:

• Steel, zinc dichromate finish

Front:

• Wrought brass, bronze and stainless steel 2-1/4″ (57mm) x 1-1/8″ (29mm) Fixed Bevel 2-1/4″ (57mm) x 1″ (25mm) (included with 20-)

Strike:

• Wrought brass, bronze and stainless steel 800 curved lip strike — standard

Hand:

• All 10 Line Locks are non-handed except for the G & Y Levers

Roses:

• Heavy wrought brass and bronze

Latch:

• Stainless steel 1/2″ (13mm) throw

Cylinder:

• Brass, 6 pin, LA keyway standard

Keys:

• Two, nickel silver

Masterkeying:

• Can be master keyed or grand master keyed Construction key systems available

Finishes:

• 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Door Prep:

• ANSI/BHMA A156.115

Minimum Stile:

• 4-1/2″ (114mm)

Strength, Durability and Security:

• Cycle Test: Exceeds 9 times ANSI/BHMA A156.2 Grade 1 requirements

• Abusive Locked Lever Torque- without entry gained:
• Exceeds 1.5 times ANSI/BHMA A156.2 Grade 1 requirements

• 7 YEAR LIMITED WARRANTY –
• no service required to maintain warranty

Convenience:

• Installs in 1 minute or less

• Quickly adapts to fit multiple through-bolt positions

• User friendly packaging

• User friendly instruction sheets

• Convenient installation diagram on box

Design:

• Solid feel and precise lever action

• Slim rose design available

• Decorative Levers
• Coastal Series designs
• Gulfport and Yarmouth

• Levers are solid one piece cast construction,
• except “J” lever

Flexibility:

• Fits a variety of door preparations with adaptable through-bolt positioning

• Accommodates retrofit applications with
• optional 2-3/8″, 3-3/4″ and 5″ backset latches

• 6 ADA lever styles to complement a wide array of design applications

• Levers (B, L, J & P) are non-handed for efficient warehousing and for ease of installation

• 11 Architectural grade finishes

• 21 Functions

• SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Security:

• Classroom security and multiple locking functions available

• Security key systems available
• (Signature, Keso, BR-XC, XC)

Applications:

• Designed to conform to national & state fire and handicapped requirements

• Grade 1 Lock

• Heavy duty commercial and institutional interior and exterior doors

• Offices

• Schools/Universities

• Hospitals

• Manufacturing facilities

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
