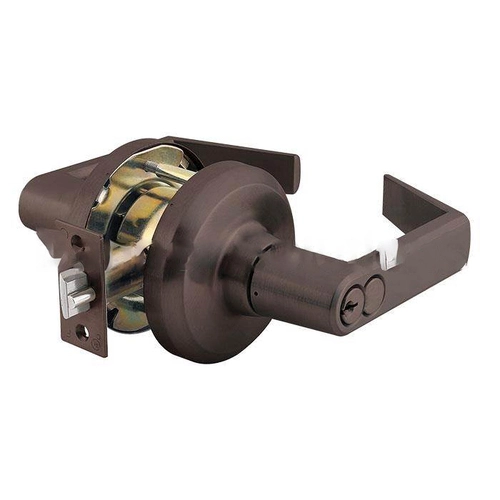

Stanley Tools Stanley QCL151-E613-S4-478S-BF-SK QCL151 Series Entry/Office SFIC Lock, Oil Rubbed Dark Bronze

Grade 1 Heavy Duty Cylindrical Lock – Entry/Office SFIC Function – Sierra Lever – 2-3/4″ Square Latch – 4-7/8″ ANSI Strike – Best “F” SFIC Keyway – Special Keying – 613 Oil Rubbed Bronze Finish
QCL100 SeriesHeavy-Duty Cylindrical Locks

STANLEY Commercial Hardware QCL100 Series delivers quality, performance and long-term durability at a great value. When you need a reliable lockset for high-traffic, heavy-abuse applications, the QCL100 Series offers flexible solutions with built-in security features to meet those demands. QCL100 locks are built to have an exceptionally reliable performance life, be easy to install and remain vandal resistant.

Features:

• Tested to meet Grade 1 specification of 800,000 cycles.

• Standard clutching mechanism provides resistance to damage caused by physical force.

• Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag.

• Concealed mounting screws.

• Compartmentalized packaging allows for quick and easy installation.

Certifications:

• ANSI/BHMA A156.2 Series – Grade 1

• ANSI A117.1 Accessibility Code (ADA Compliant)

• UL/cUL Listed (3 hours) for “A” label single-door applications
  (4′ x 8′) (1.219m x 2.438m)

• UL10C/UBC 7-2 (1997) Positive Pressure Rated

• UL10B Pressure Rated

• California State Reference Code (formerly Title 19 – Fire Marshal)

• Hurricane Compliant – Miami-DADE N.O.A.

Specifications: Handing:

• ll QCL100 Series Levers Locksets are non-handed.

Door thicknes:

• 1 3/8″ – 2″ (35mm-51mm) standard.

Backset:

• 2 3/4″ (70mm) square standard. 2 3/8″ and 5″ (60mm, 127mm) available.

Exposed trim:

• Pressure cast zinc, plated to match finish designation.

Strike:

• ANSI Strike 1 1/4″ x 4 7/8″ (32mm x 124mm) standard.
• Other strike options also available.

Door prep:

• 2 1/8″ (54mm) diameter cross bore.

Latch bolt:

• Keyed/Exterior 1/2″ (12.7mm) steel throw;Interior 1/2″ (12.7mm) spring latch.

Latch faceplate:

• 1 1/8″ x 2 1/4″ (29mm x 57mm) standard.

• Single dummy is surface mounted.

• Electrification options available.

Keying:

• 6-pin non-IC brass cylinders. 6 or 7 pin SFIC option available. Many keying options available from our factory to include, but not limited to, master keying, grand master keying and construction keying.

• 2 keys per lockset.

• Offered with the following keyway options: BF-BEST “F” SFIC, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, & LC-Less Cylinder. Consult factory for other cylinder options.

Warranty:

• Lifetime Mechanical, 3-year finish,* and 1-year electrical
• *(613/US10B carries no finish warranty)

Functions:

• Series – QCL120
• Description – Single Dummy

• ANSI – F75
• Series – QCL130
• Description – Passage

• ANSI – F111
• Series – QCL135
• Description – Communicating

• ANSI – F76
• Series – QCL140
• Description – Privacy

• ANSI – F109
• Series – QCL150
• Description – Entry/Office

• ANSI – F109
• Series – QCL151
• Description – Entry/Office SFIC

• ANSI – F90
• Series – QCL154
• Description – Corridor

• ANSI – F90
• Series – QCL155
• Description – Corridor SFIC

• ANSI – F84
• Series – QCL160
• Description – Classroom

• ANSI – F84
• Series – QCL161
• Description – Classroom SFIC

• ANSI – F110
• Series – QCL168
• Description – Classroom Security

• ANSI – F110
• Series – QCL169
• Description – Classroom Security SFIC

• ANSI – F86
• Series – QCL170
• Description – Storeroom

• ANSI – F86
• Series – QCL171
• Description – Storeroom SFIC

• Series – QCL192
• Description – Electronically Locked

• Series – QCL193
• Description – Electronically Locked SFIC

• Series – QCL194
• Description – Electronically Unlocked

• Series – QCL195
• Description – Electronically Unlocked SFIC

Finishes: 605:

• Bright Brass

613:

• Oil Rubbed Bronze

619:

• Satin Nickel

625:

• Bright Chrome

626:

• Satin Chrome
