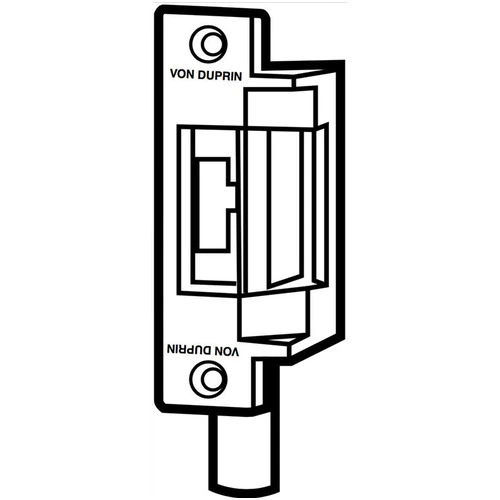

Electric Strike, for Mortise or Cylindrical Locks, 12VDC, Fail Safe, Dual Monitor Switch, Bright Stainless Steel
The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6211AL is designed for mortise locks witout a deadbolt and cylindrical locks in single door applications and has round corners for aluminum frames.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
| Configuration | Centered |
|---|---|
| Faceplate Size | 4-7/8 In. X 1-1/4 In. |
| Base Material | Stainless Steel |
| Product Width | 1.25" |
| Product Length | 4.875" |
| Product Height | 1.469" |
| Package Qty | 1 |
| Operating Voltage | 12VDC |
| Keeper Size | 3/4 In. |
| Frame Depth | 1-11/16 In. |
| Frame Application | Aluminum |
| Faceplate Shape | Flat Face, Round Corners |
| Use With | Cylindrical and Mortise Locks |
| ANSI Number | 0 |
| Amp Draw | 600mA |
| Package Width | 5.875" |
| Package Volume | 161.9296875 |
| Package Length | 10.5" |
| Package Height | 2.625" |
| Function | Electrically Locked (Fail Safe) |
| Color Code | 629/US32 |
| Color | Bright Stainless Steel |
| Switch Type | DS |
