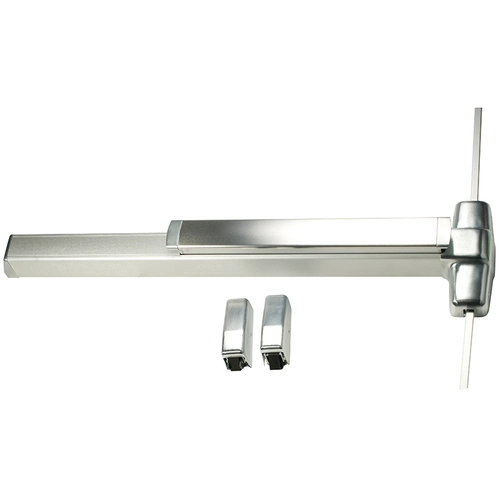

Surface Vertical Rod Exit Device, Exit Only, 48 In., Fire Rated, Anodized Aluminum
9827-F/9927-F Fire exit surface mounted vertical rod device pairs of doors up to 8′ x 10′ (2438mm x 3048mm) , UL listed for fire exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SS (signal switch). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors. Finishes _ US3, US4, US10, US26, US26D, US28 & 313. US15 and US32D available with 98 Series only.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
| Door Height | 84 In. |
|---|---|
| Package Length | 49.25" |
| Case Volume | 9353 |
| Color Code | 628/US28 |
| Origin | USA |
| BAA Qualified | Yes |
| Product Length | 45" |
| Base Material | Aluminum |
| Minimum Stile Size | Wide |
| Door Material | Metal or Wood |
| Finish | Aluminum, Anodized |
| Strike Top | 229F |
| Warranty | 3-year warranty |
| Pack Size | 1 |
| Builders Hardware Product Type | Exit Devices |
| Door Handing | Universal/Reversible |
| General Material | Brass |
| Hardware Finish Family | Metal |
| Product Depth (in.) | 49.25 |
| Product Height (in.) | 10.5 |
| Product Width (in.) | 5 |
| Package Width | 5" |
| Case Height | 11.75" |
| Package Volume | 2585.625 |
| Special Marks | Fire rated 1-1/2 Hours {B} {D} |
| Mechanical Function | Exit Only |
| Color | Satin Aluminum Clear Anodized |
| Physical Appearance | Wide Stile Pushpad |
| Case Width | 16" |
| Product Width | 3.75" |
| Hand | Non-Handed |
| Grade | Grade 1 |
| Fire Rated | 1-1/2 Hours {B} {D}, Yes |
| Product Height | 8" |
| Door Thickness | 1 3/4 In. – 2 1/4 In. |
| Device Type | Surface Vertical Rod |
| Strike Bottom | 304L |
| Case Length | 49.75" |
| Mechanical Options | Fire Rated Device |
| Package Qty | 1 |
| Door Width | 34 In. – 48 In. |
| Package Height | 10.5" |
| Includes Trim | No |
| Device Length | 48 In. |
| UNSPSC | 31162800 |
