Name: Buy From Von Duprin 9947EO-F 3 US28 Exit Device Satin Aluminum Clear Anodized USA Online Store - International Shipping - Specialty Door Hardware Store
SKU: 9947EO-F 3 US28
Price: 95.99 USD
Availability: InStock

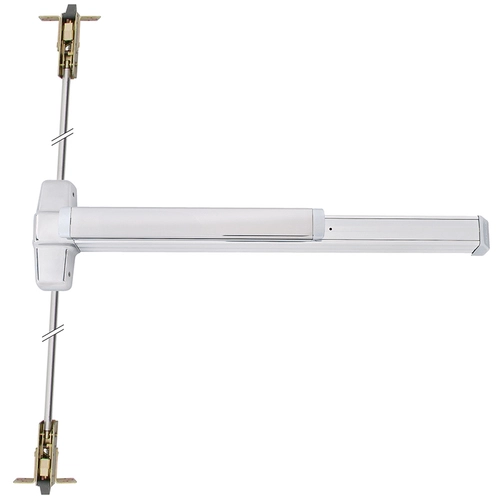

Von Duprin 9947EO-F 3 US28 Exit Device Satin Aluminum Clear Anodized

$95.99

SKU: 9947EO-F 3 US28 Category: Commercial and Residential Door Hardware Tag: Von Duprin

Free Shipping Worldwide
Hassle-Free Payments
Quality that lasts, prices that don't.
Shop with Zero Worries

Concealed Vertical Rod Exit Device, Exit Only, Fire Rated, Aluminum

9847-F/9947-F Fire exit concealed vertical rod device for use on pairs of doors up to 8′ x 10′ (2438mm x 3048mm) , UL listed for fire exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices. Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D available with 98 Series only.

Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 9947 device has a grooved case and comes in several available finishes.

Door Height	6 Ft. 8 In. – 8 Ft. 4 In.
Finish	Aluminum, Anodized
Color Code	628/US28
Origin	USA
BAA Qualified	Yes
Product Length	33"
Base Material	Aluminum
Minimum Stile Size	4-1/4"
Door Material	Hollow Metal
Package Length	36.75"
Warranty	3-year warranty
Package Width	5"
Pack Size	1
Builders Hardware Product Type	Exit Devices
Door Handing	Universal/Reversible
General Material	Brass
Hardware Finish Family	Metal
Product Depth (in.)	36.75
Product Height (in.)	10.5
Product Width (in.)	5
Case Volume	7708
Strike Top	388
Package Volume	1929.375
Product Height	8"
Color	Satin Aluminum Clear Anodized
Physical Appearance	Wide Stile Pushpad
Case Width	16"
Product Width	3.75"
Hand	Non-Handed
Grade	Grade 1
Fire Rated	3 Hours {A}, Yes
Special Marks	Fire rated 3 Hours {A}
Device Type	Concealed Vertical Rod
Case Height	11.75"
Strike Bottom	385A
Case Length	41"
Package Qty	1
Door Width	2 Ft. 4 In. – 3 Ft.
Package Height	10.5"
Includes Trim	No
Device Length	36 In.
Door Thickness	1-3/4" – 2-1/4"
UNSPSC	31162800
