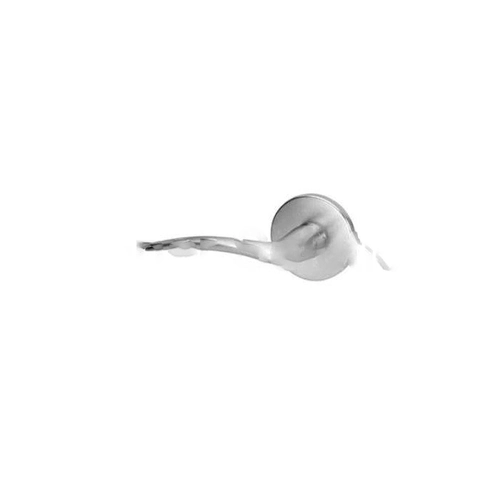

Yale Commercial ARR-8891FL-626-24V-LC-LH 8891FL Mortise Electric Lockset, Satin Chrome

Fail Secure, 24 Volt, AR-Arcadia, R Roses, 626 Satin Chrome, Less Cylinder, LH
8800 SeriesMortise Locks

Yale® 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free.

When you can’t compromise on the quality of your security, Yale Works for You℠.

MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silverbased antimicrobial coating designed to inhibit the growth of bacteria.
MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Benefits: Secure:

• Stainless steel reinforced deadbolt

Resistant to abuse:

• Heavy-duty trim prevents damage

Easy and flexible installation:

• Field reversible lever handing and latchbolt

No visible screws:

• Great deterrent to vandalism

Features:

• Heavy-duty trim for resistance against damage and vandalism

• Functions available for any industrial or commercial application

• ANSI/BHMA Certified Grade 1 for long-life and durability

• UL/cUL listed for 3 hour fire rated doors

• 10 year mechanical warranty

• Available in a variety of attractive trims and finishes

Specifications: Armor Front:

• 8″ x 1-1/4″

Backset:

• 2-3/4″ only

Case:

• Wrought steel, zinc dichromated

Deadbolt:

• 1″ throw, cast stainless steel

Door Thickness:

• 1-3/4″ standard, available for up to 3-1/4″ thick doors

Handing:

• Field reversible

Hubs:

• 3/8″ solid steel, fine-blanked and heat treated for additional strength

Latchbolt:

• 3/4″ throw, stainless steel one-piece anti-friction

Strike:

• 1-1/4″ (model 2815) curved lip strike standard

Electrical Specifications:

• Fail Safe/Fail Secure

Voltage:

• 12VDC or 24VDC Regulated

Current Draw:

• .25A at 24VDC
• .5A at 12VDC

Operating Temp:

• Max. 151°F (66°C)
• Min. -31°F (-35°C)

All monitoring switches rated at:

• 2 Amp @ 30 VDC
• 3 Amp @ 125 VAC

Finishes: 605:

• Bright Brass, Clear Coated

606:

• Satin Brass, Clear Coated

609:

• Satin Brass, Blackened, Satin Relieved, Clear Coated

611:

• Bright Bronze, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze – equivalent

616:

• Satin Bronze, Blackened, and Satin Relieved, Clear Coated

618:

• Bright Nickel Plated, Clear Coated

619:

• Satin Nickel Plated, Clear Coated

620:

• Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated

625:

• Bright Chrome Plated

626*:

• Satin Chrome Plated

629:

• Bright Stainless Steel

630*:

• Satin Stainless Steel

693:

• Black Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• Designer trims are available in only the following finishes: 605, 606, 619, 625, 656. SL trim only available in 630 finish only. Reflections® decorative levers are NOT available in the following finishes: 609, 616, 620, 693.

• *Finish available with MicroShield® antimicrobial coating. Add YMS suffix to order Microshield antimicrobial coating.

• MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
